Product design · Dipa Inhouse · 2026

SENRO PRO

AI glasses

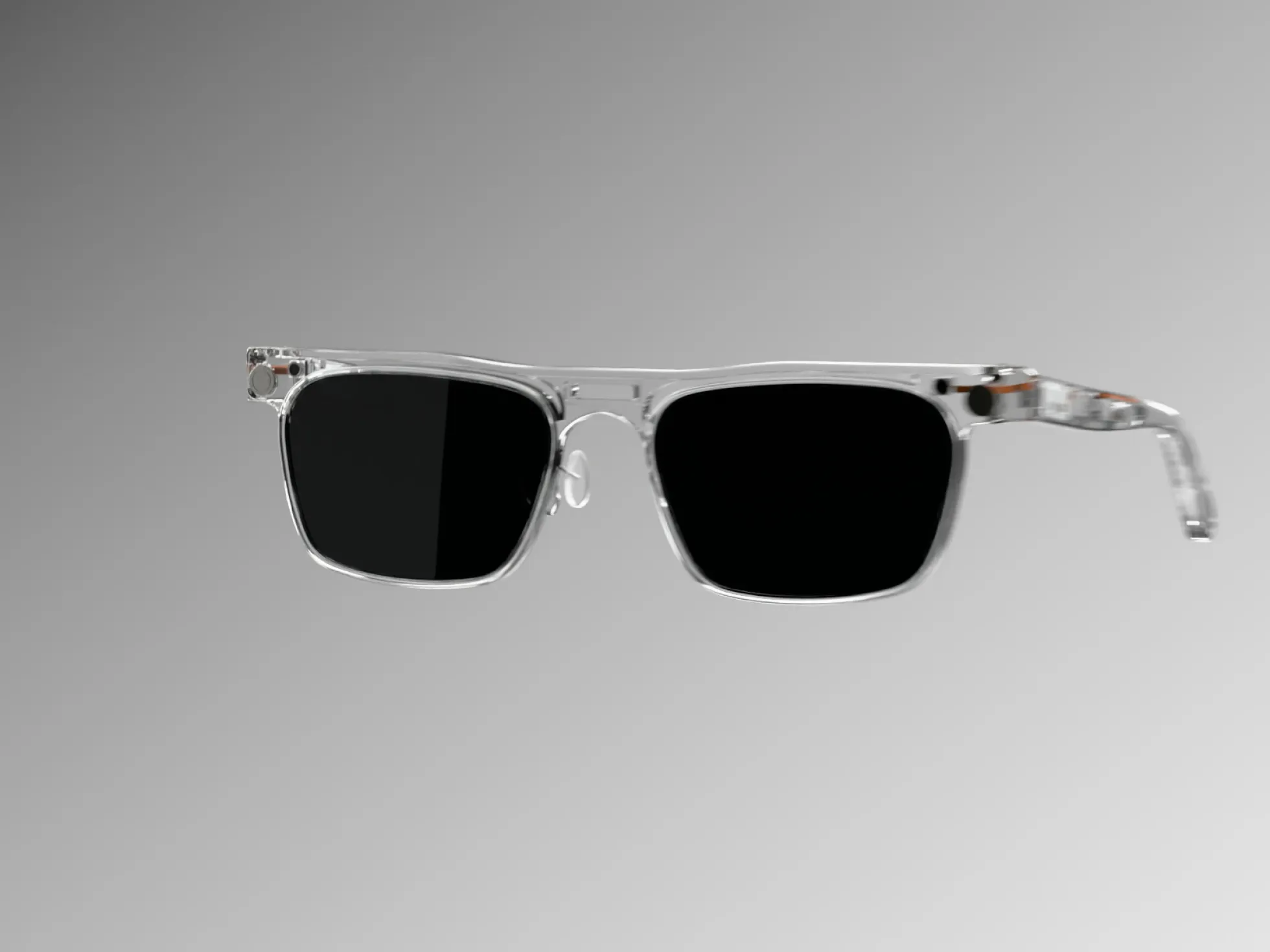

Senro PRO, clear glasses with dark lenses, floating on a grey background.

Overview

Most smart glasses want your attention. Senro PRO asks for a glance: one line of green, low on one lens, gone the moment you look away.

A self-initiated product concept. The frame, its insides, the lens display and the film were designed together, so each one only has to do one job.

Role
Industrial design, CAD surfacing, 3D, motion
Output
CAD model, renders, a 24 s film
Tools
CAD tools, Blender, Figma
Year
2026, self-initiated

01  Form

One clear body.

Front, temples and hinge blocks read as a single shell of clear polycarbonate. Nothing is painted over, so the inside had to be designed as carefully as the outside.

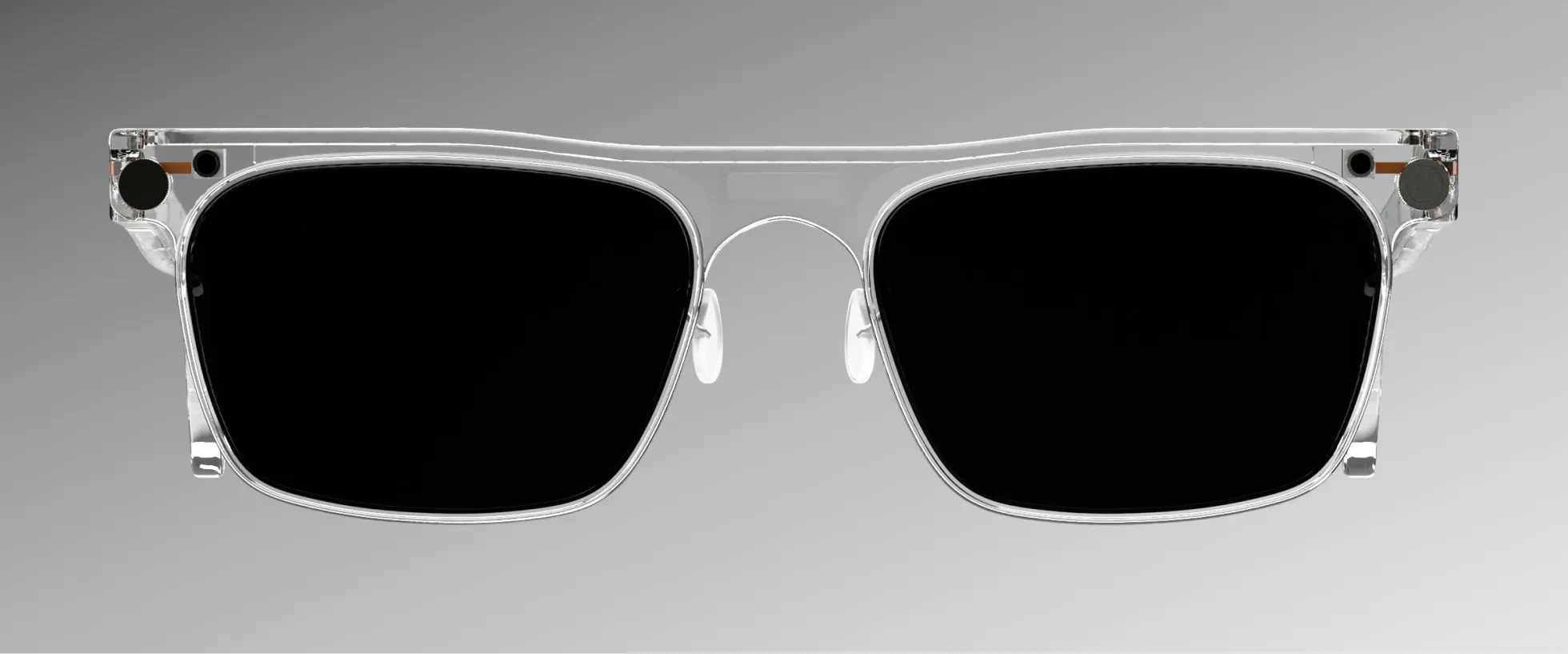

Senro PRO from the front, a clear frame with dark lenses.
142
mm · frame width
53.5
mm · lens width
18.8
mm · bridge
3.8
mm · temple

02  Process

Drawn sixteen times.

Senro was shaped entirely in CAD. Sixteen versions moved the lens line, the brow cut and the hinge block until the front read as a single piece.

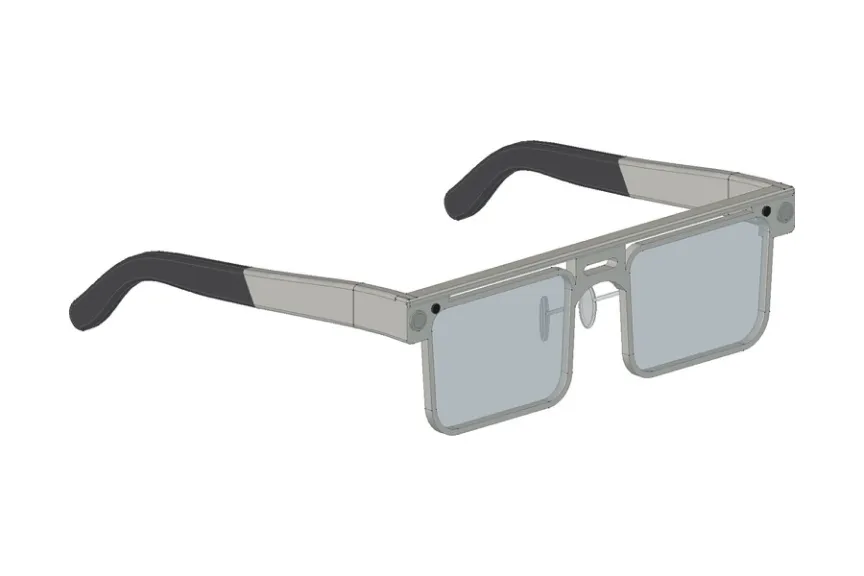

Version 1 of the frame in CAD.
v01Block-out. Proportion and lens line.
Version 8 of the frame in CAD.
v08Brow cut opened, hinge block defined.
Version 10 of the frame in CAD.
v10Frame depth and lens size locked.

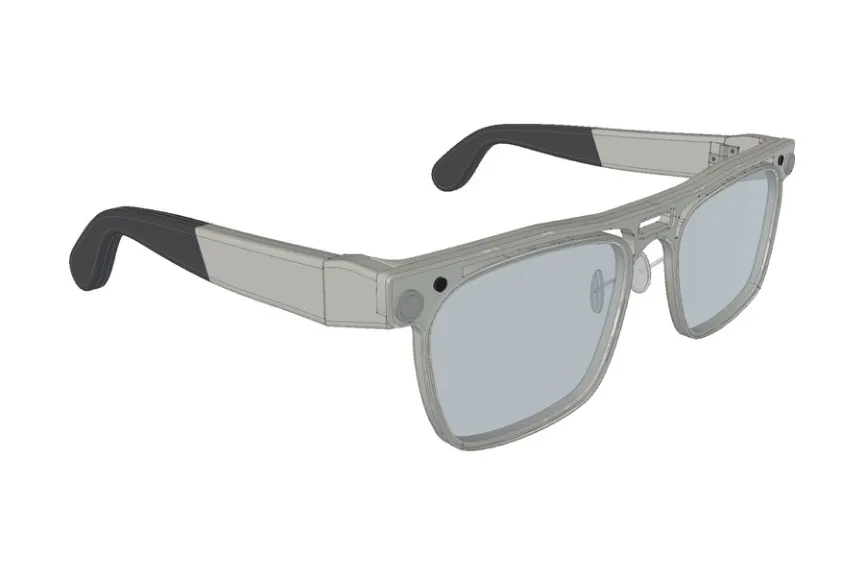

Version 16 of the frame in CAD.
v16Final surfaces, hinge resolved.

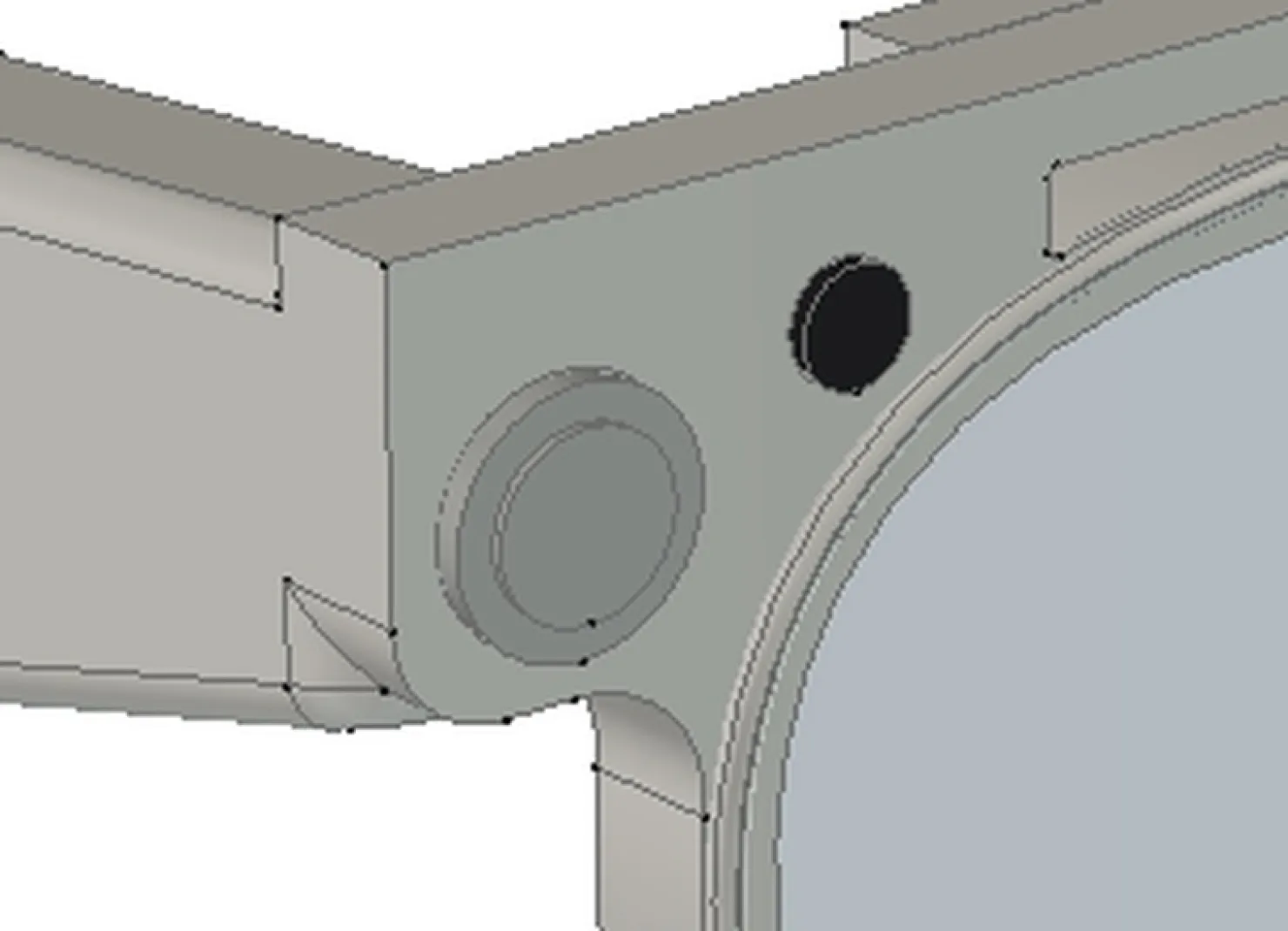

The frame corner in CAD with a sharp tangent edge.
G1 · Tangent cornerTwo surfaces share only a tangent, so the highlight breaks at the corner.

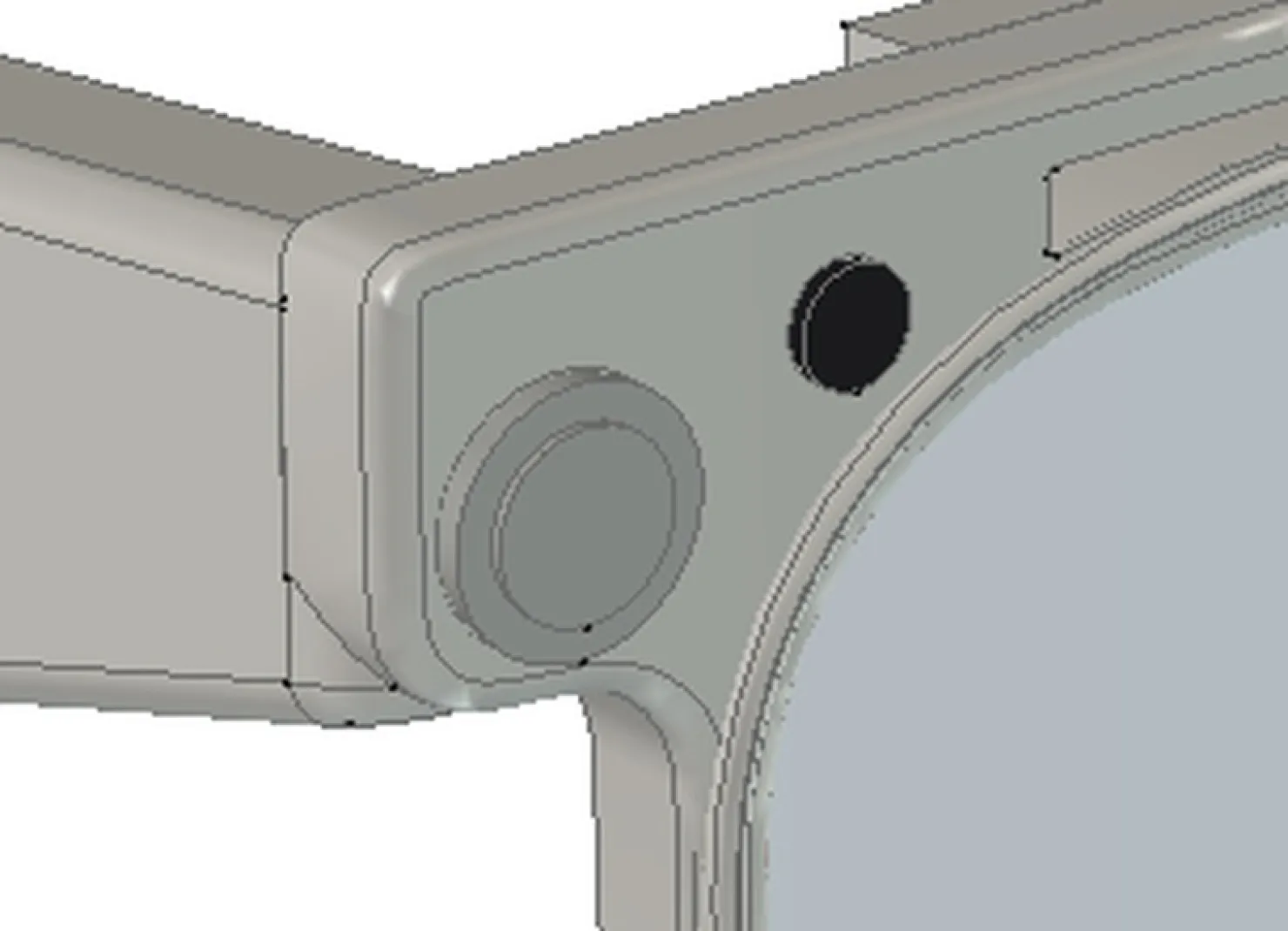

The same corner with a smooth curvature continuous blend.
G2 · Curvature continuousA quintic blend carries curvature across the corner, and light flows around it.

03  Details

Made to be looked at closely.

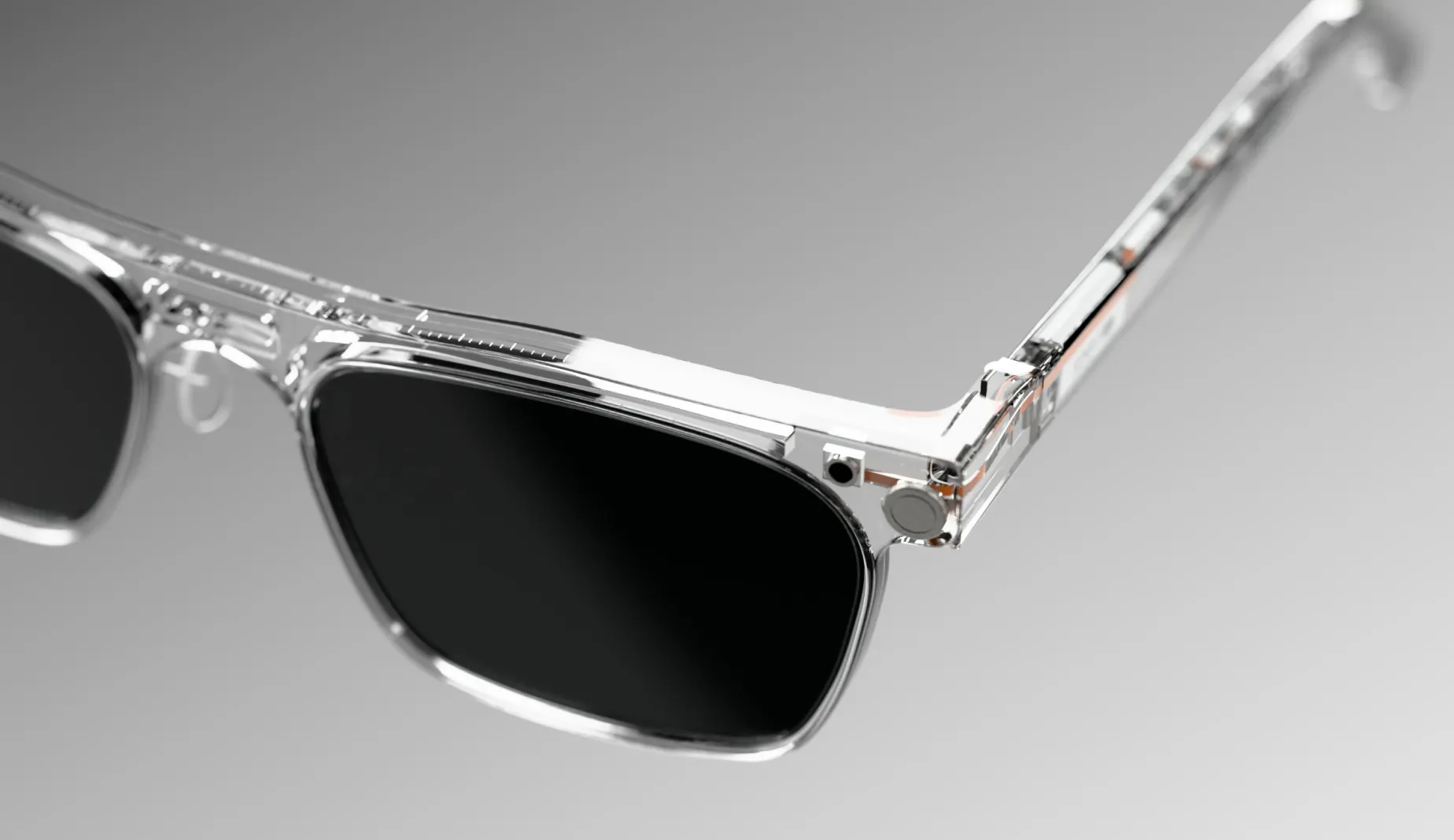

Close up of the brow and the hinge block with the camera.
A · Brow and hinge blockThe camera, the knurled pairing button and the hinge share the corner block, away from the lens.

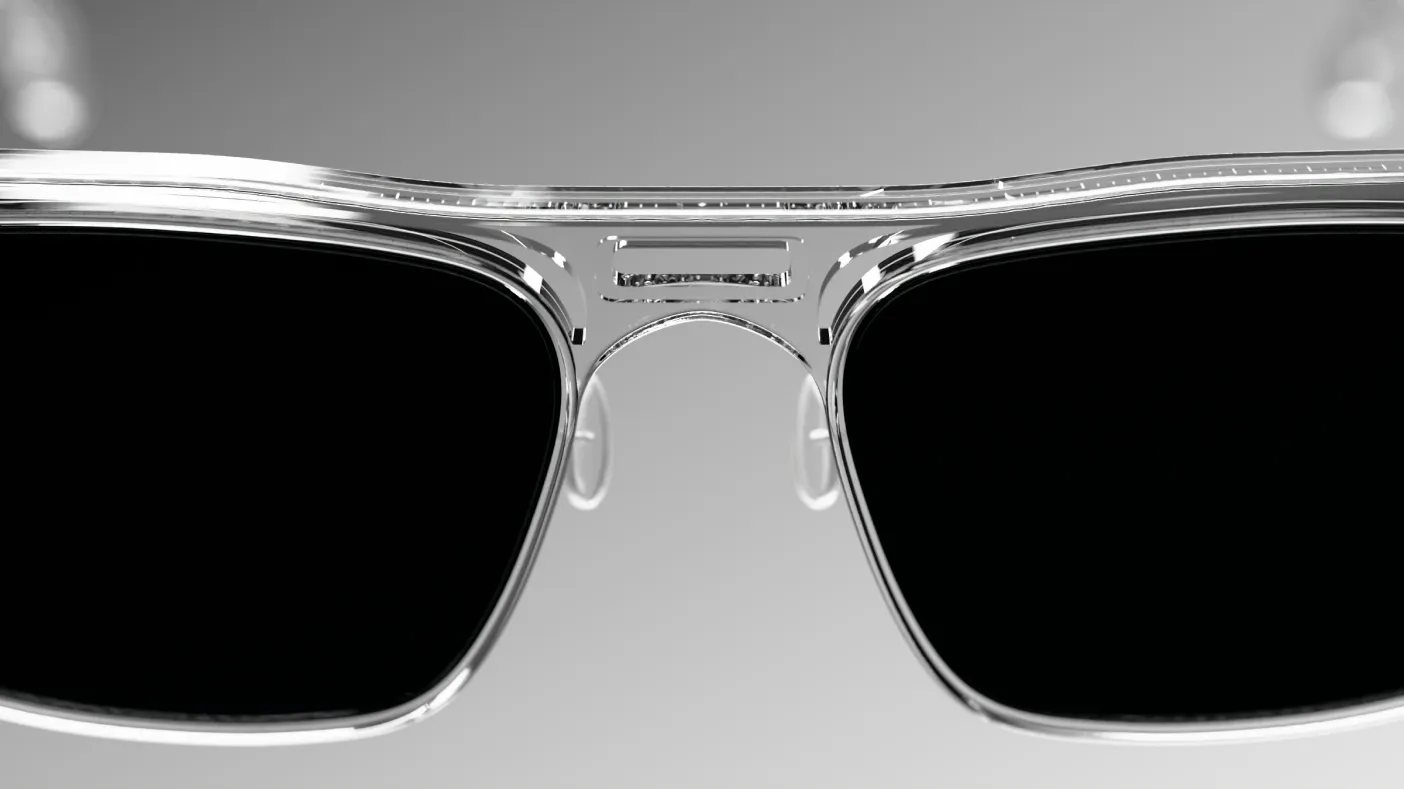

Close up of the bridge and the clear nose pads.
B · BridgeA cut-through brow bar and clear floating pads keep the front light and open.

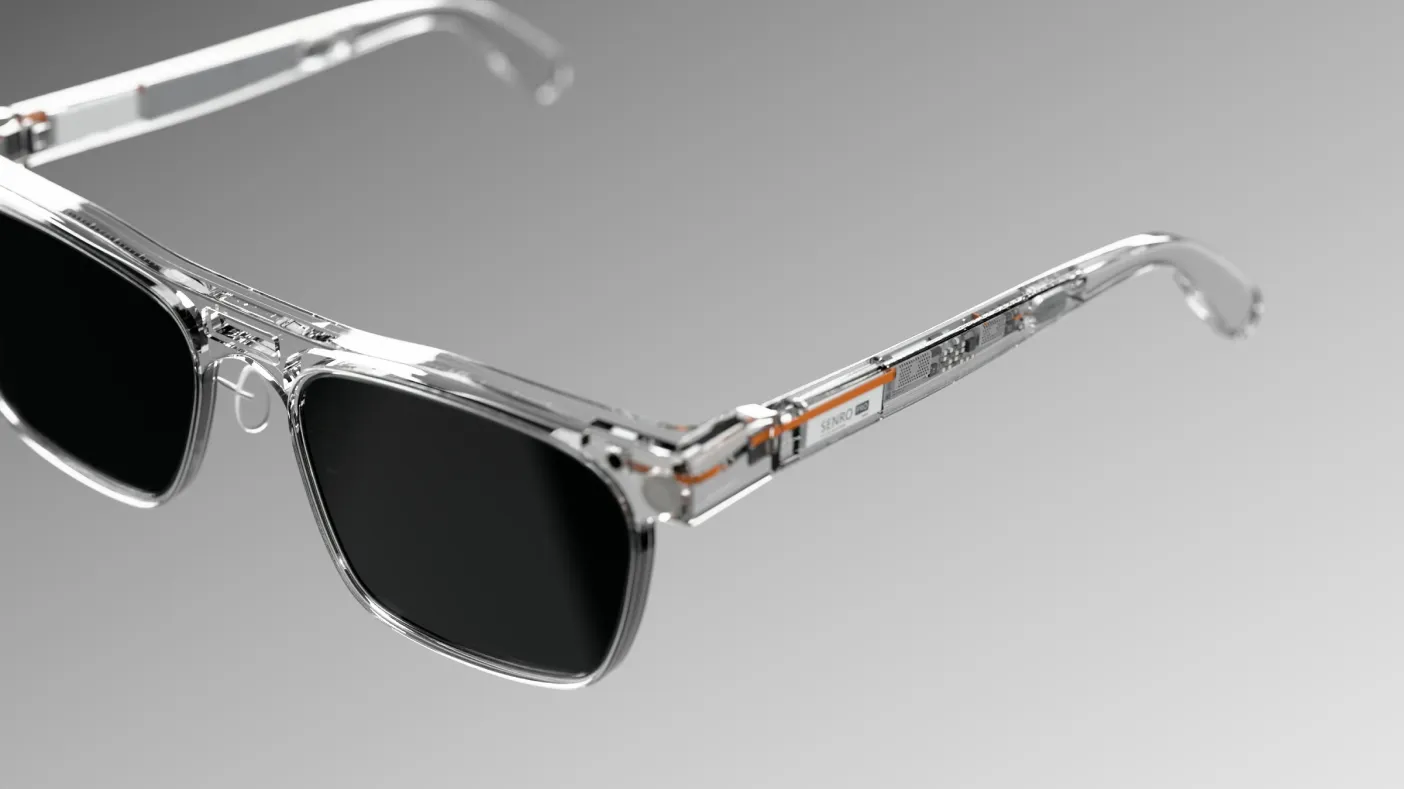

Close up of the hinge with metal knuckles inside the clear block.
C · HingeScrewed metal knuckles sit inside the clear block. The copper flex passes straight through.

04  Inside

Clear on purpose.

A cell in each temple, a board cut to follow the temple, and a copper flex from the board to the hinge. Every part is placed as if it will be seen, because it will.

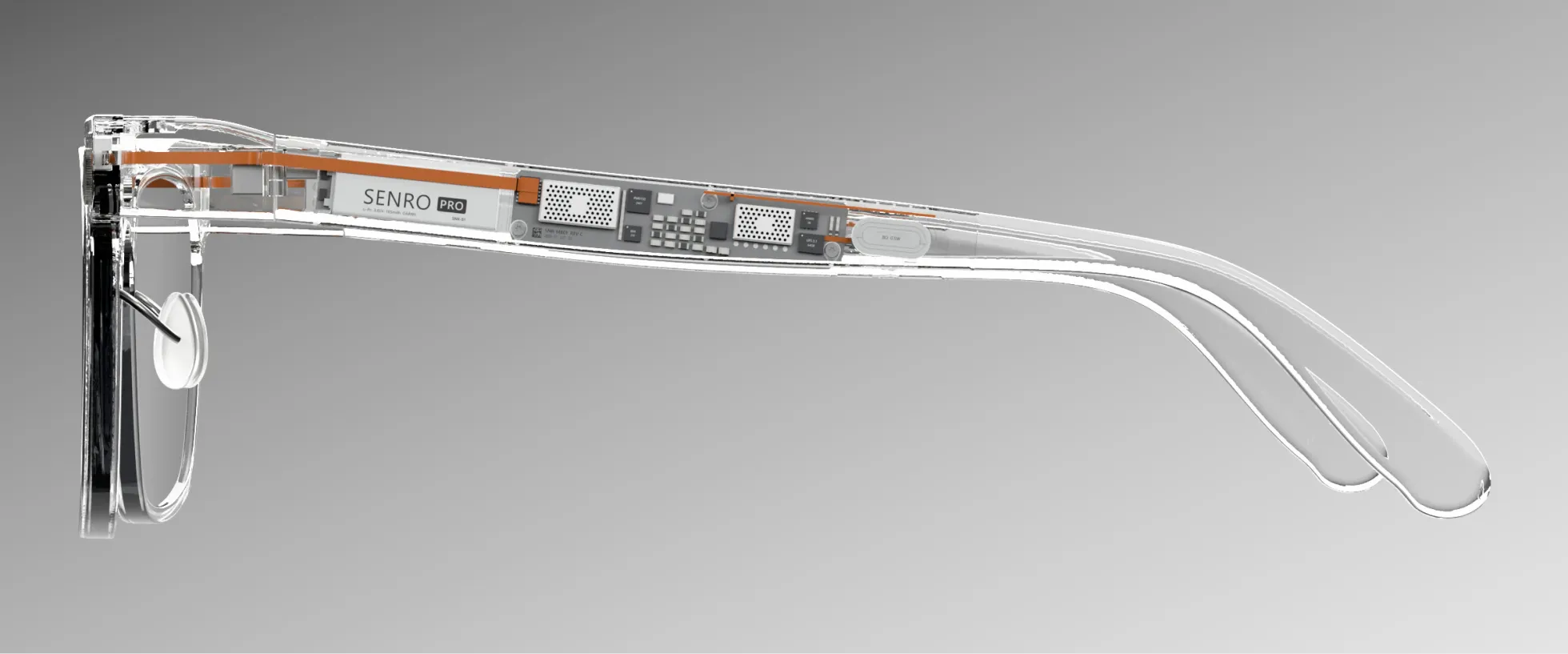

Senro PRO in profile, the board and cell visible through the clear temple.

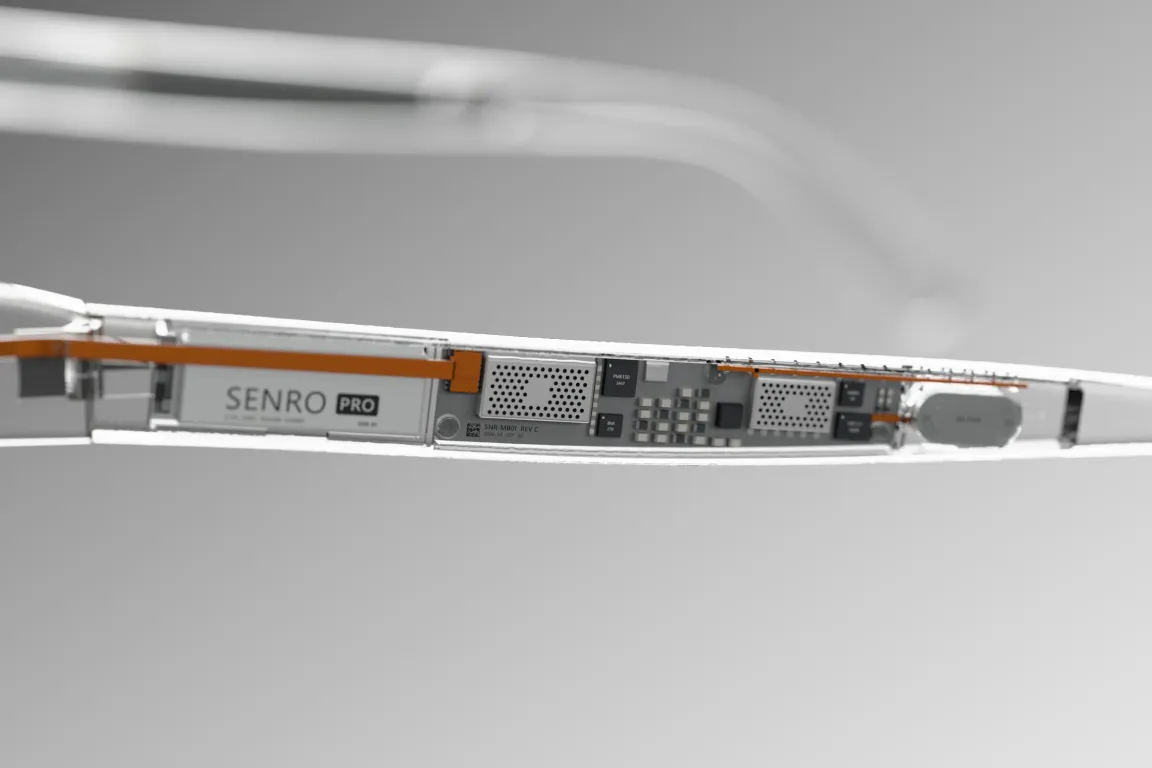

The battery cell inside the temple with the Senro PRO logo.
CellThe only logo on the frame is printed on the battery.

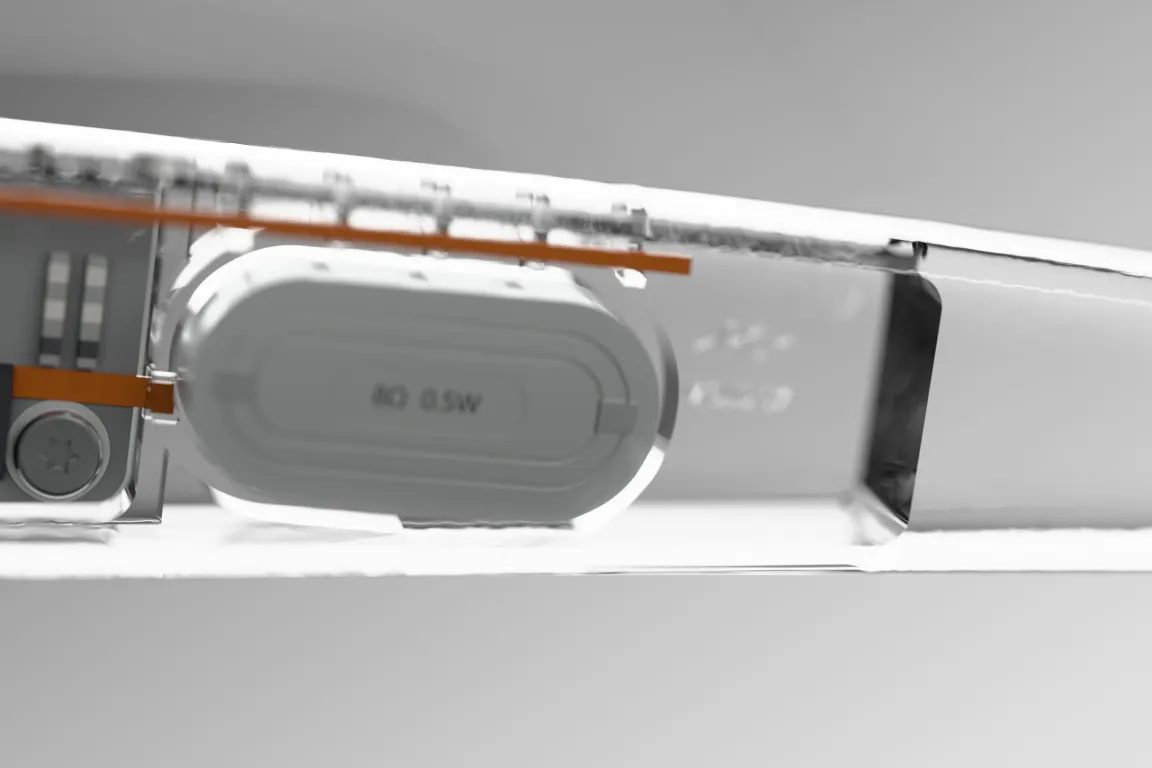

The speaker in its moulded chamber inside the temple.
SpeakerAn open-ear speaker in its own moulded chamber, 8 Ω, 0.5 W.

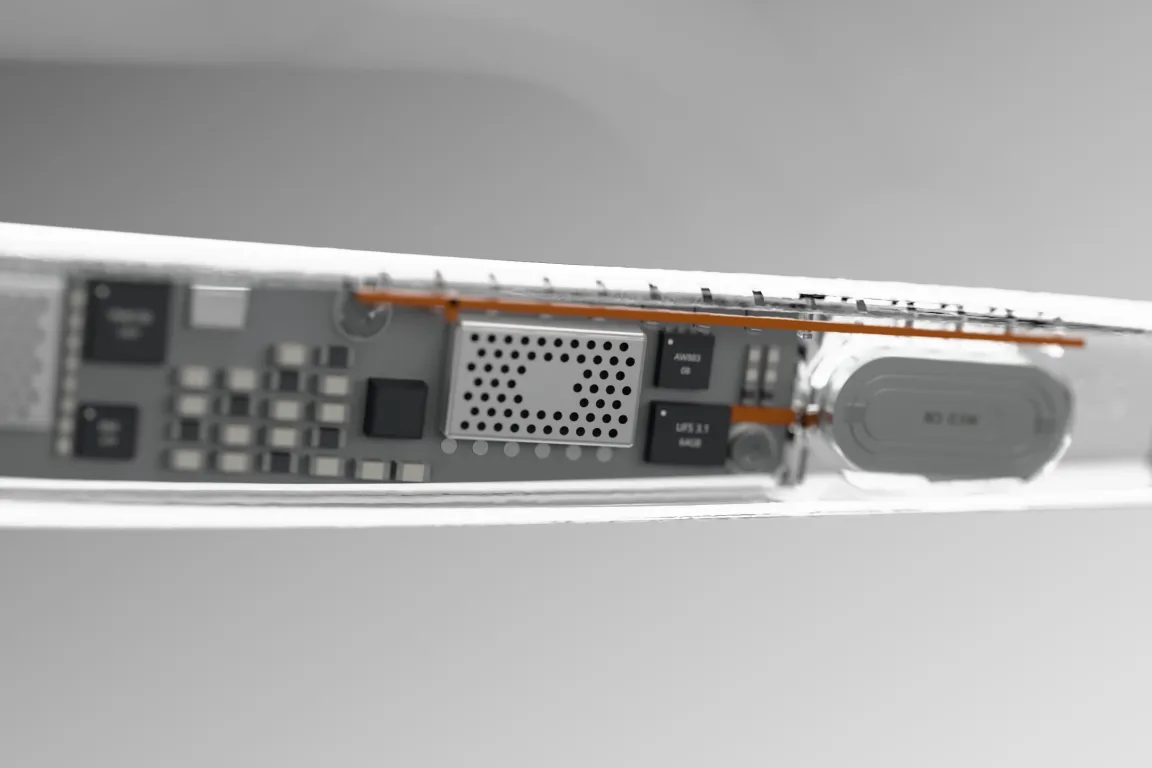

The circuit board inside the temple under a shield can.
BoardRadio and memory under a shield can, test pads left in view.

05  Material

Clear, all the way through.

Clear acetate hides nothing, so nothing inside was left to chance. Copper flex, shield cans and the cell are laid out with the same care as the front.

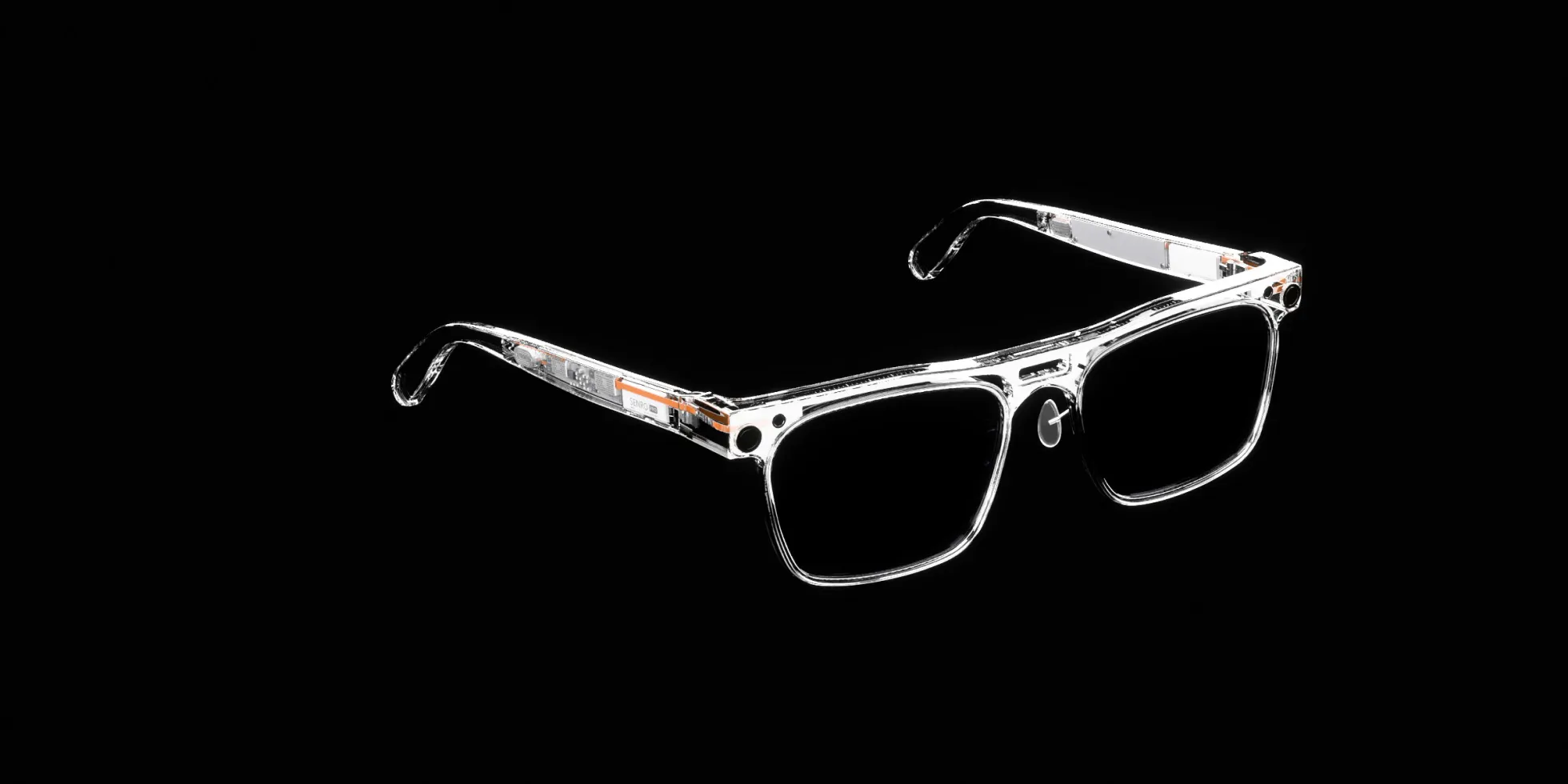

Senro PRO on black, the clear frame catching the light.

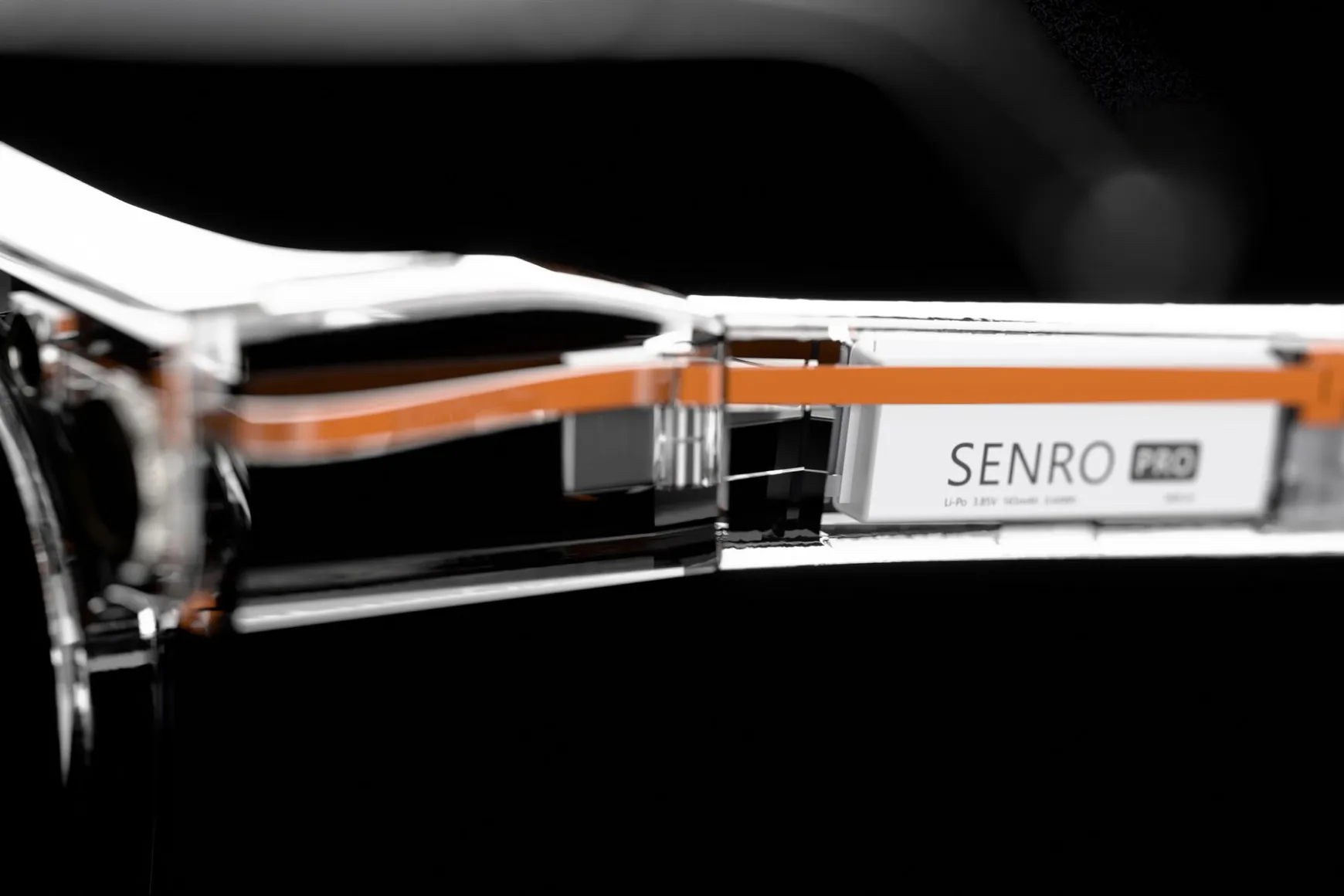

The copper flex passing through the clear hinge block.
HingeThe copper flex passes straight through the clear block.

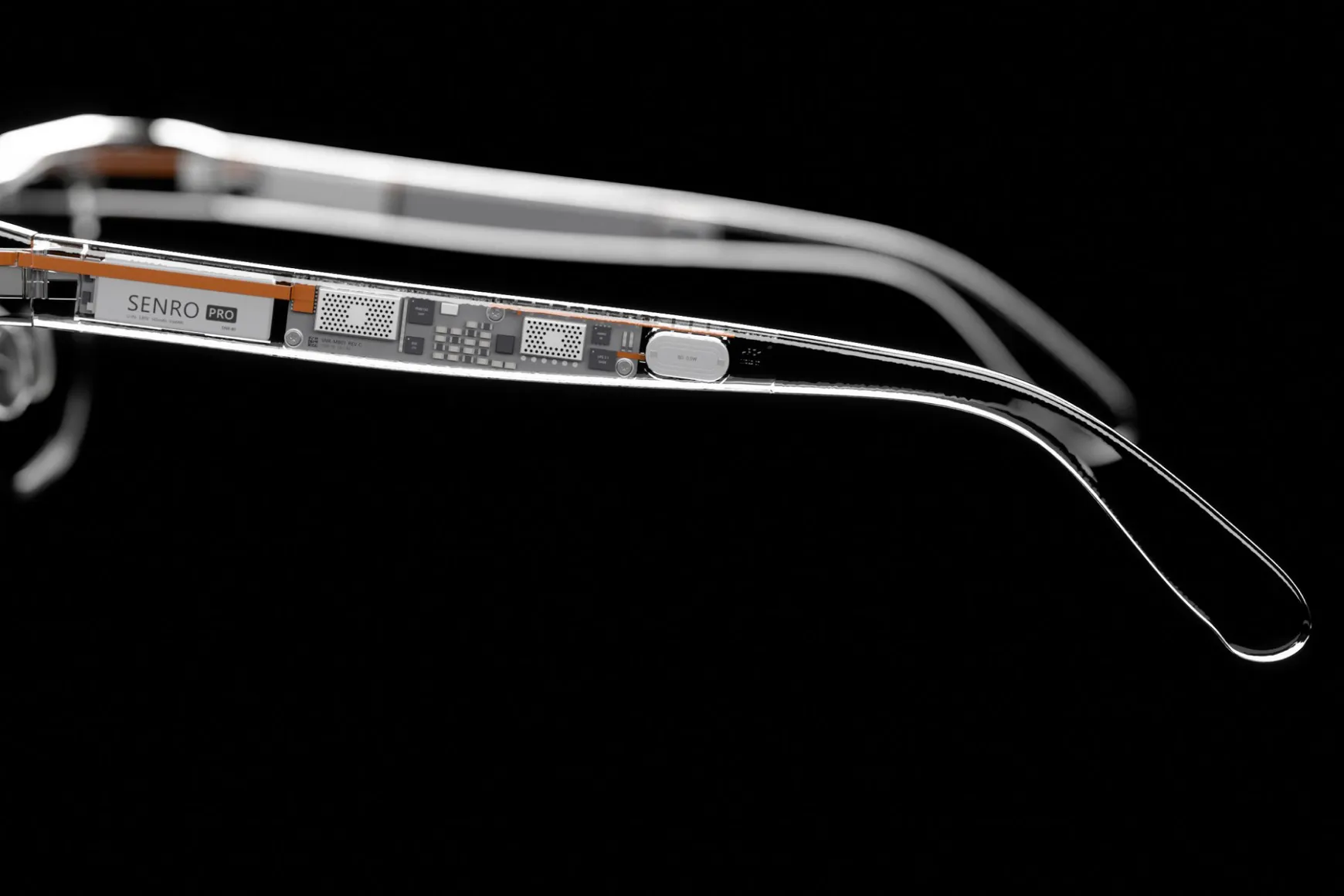

The temple on black with the board and cell inside.
TempleBoard and cell follow the taper of the arm.

06  Pairing

Open the arms. Press the temple.

Unfolding the arms wakes the lens and shows a four-digit code. One press on the temple button confirms it matches the code on your phone.

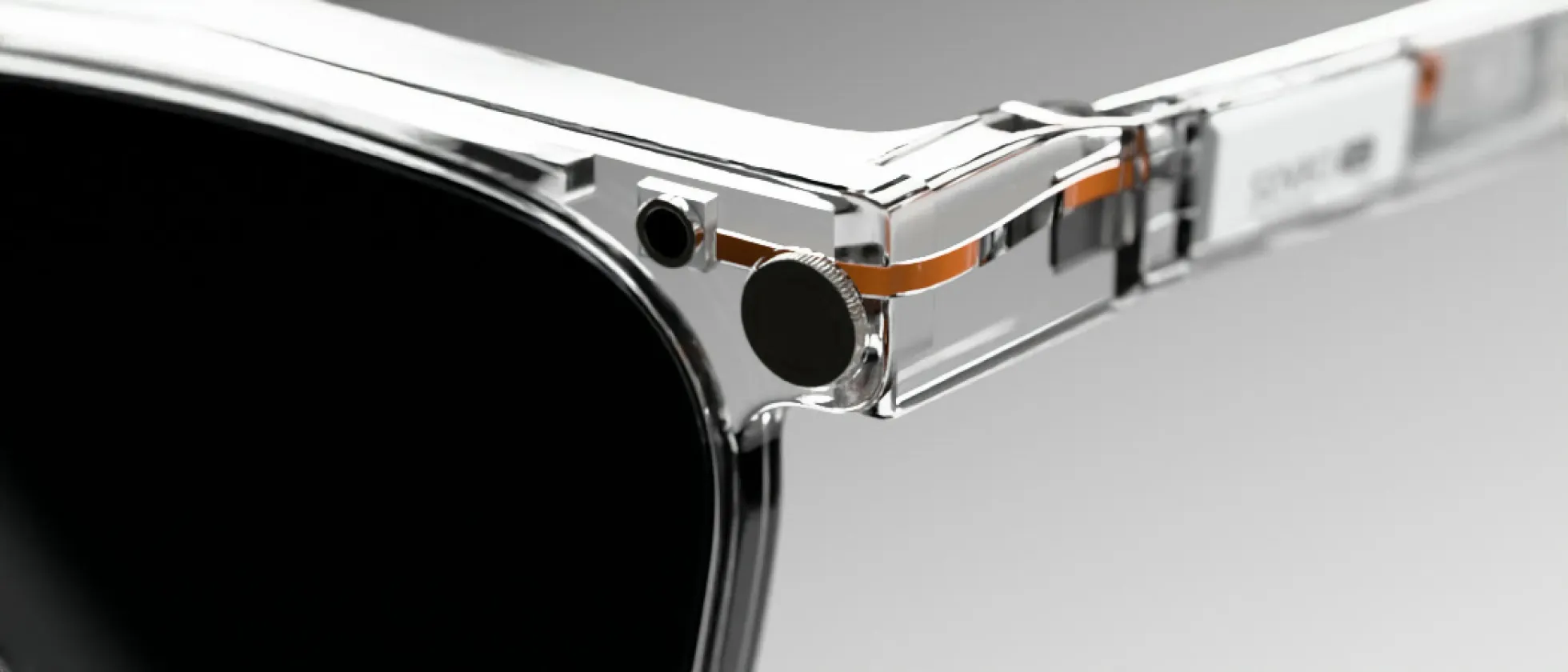

The corner of the frame with the pairing button and camera.

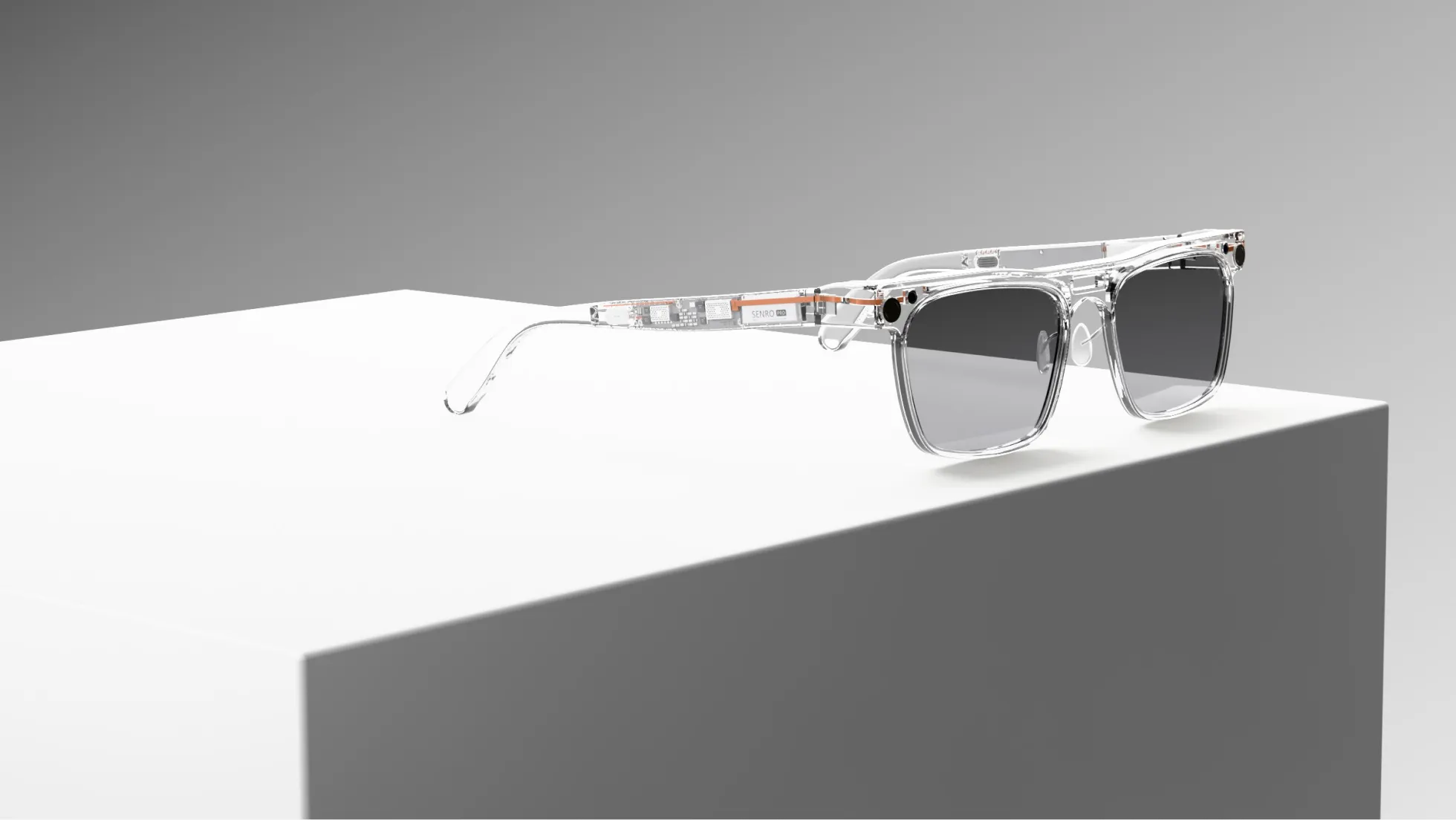

Senro PRO resting on the edge of a white pedestal.

07  Display

One lens. One color. One line at a time.

The display lives in one lens, and you choose which. It draws in a single green that stays crisp through a tinted lens and disappears into it when it is off.

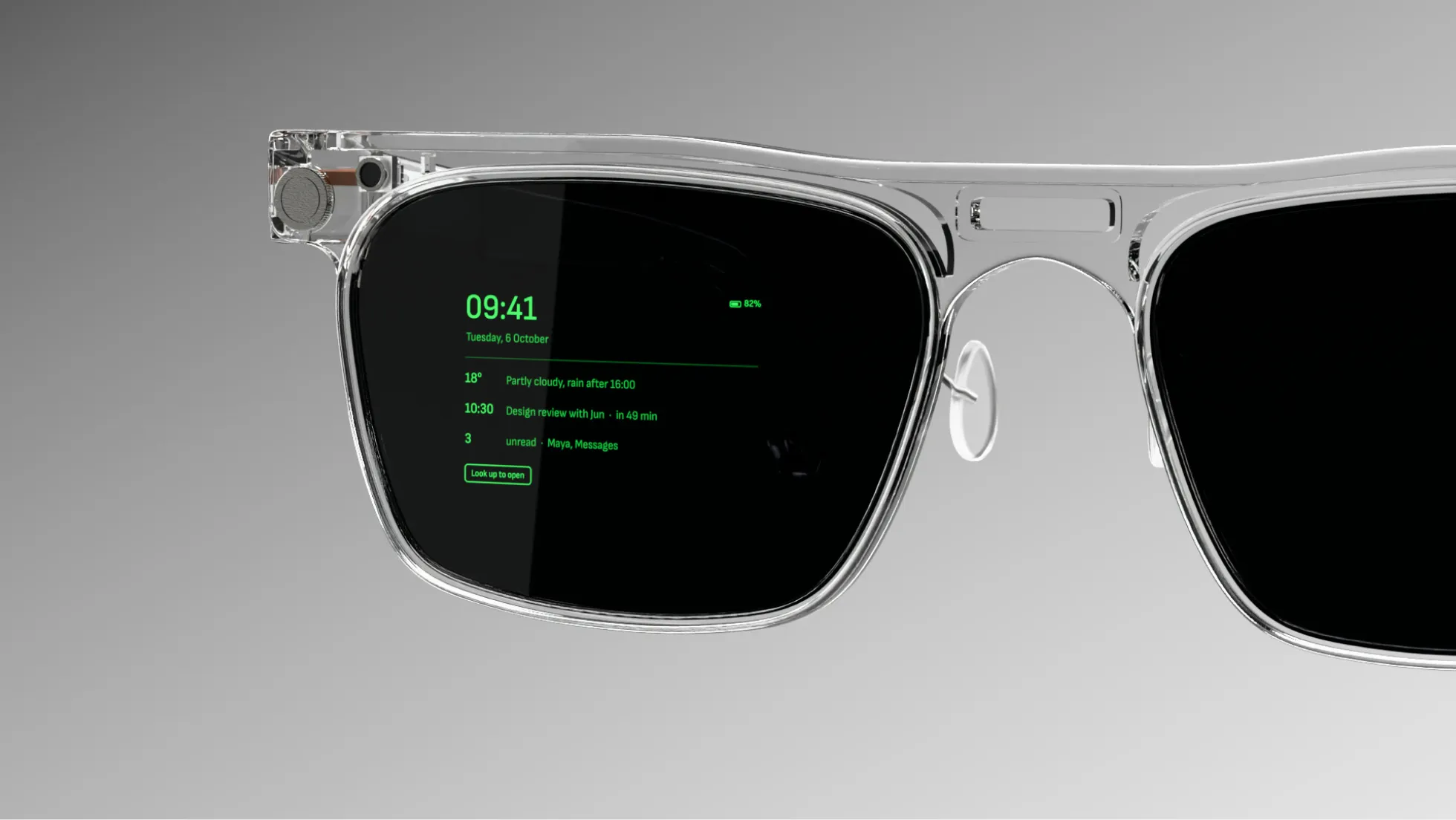

The left lens showing the time and three short lines in green.

08  Specifications

Senro PRO, in short.

Frame
One shell of clear polycarbonate, 142 mm wide
Lenses
53.5 mm wide, 18.8 mm bridge, tinted
Temples
3.8 mm thick, 117 mm from the hinge
Display
One lens, left or right. Monochrome #4DFF70 on a 640 × 400 virtual canvas, about 2 m away
Camera
12 MP photos and 15 s clips, from the hinge block
Controls
Temple touchpad: tap, double tap, hold. Pairing button in the corner block
Audio
Open-ear speaker in each temple, 8 Ω, 0.5 W
Power
One cell in each temple
Storage
32 GB

09  Market

The display is still an open lane.

Smart glasses have left the lab. Shipments jumped 263% in the first half of 2026. Yet almost everything that ships has no display, and see-through display glasses are now the fastest-growing part of XR.

+263%
AI-glasses shipments, H1 2026, year on year.
Counterpoint · Sep 2026
96%
of AI glasses shipped in H1 2026 have no display at all.
Counterpoint · Sep 2026
41.9%
yearly growth for see-through display glasses, 3M units in 2026 to 12.2M in 2030.
IDC · Jun 2026
78%
of display-less units went to North America and Western Europe.
Counterpoint · Sep 2026

Sources: Counterpoint Research, Global AI glasses shipments, 21 Sep 2026. IDC, AR/VR headset and glasses forecast, 15 Jun 2026.

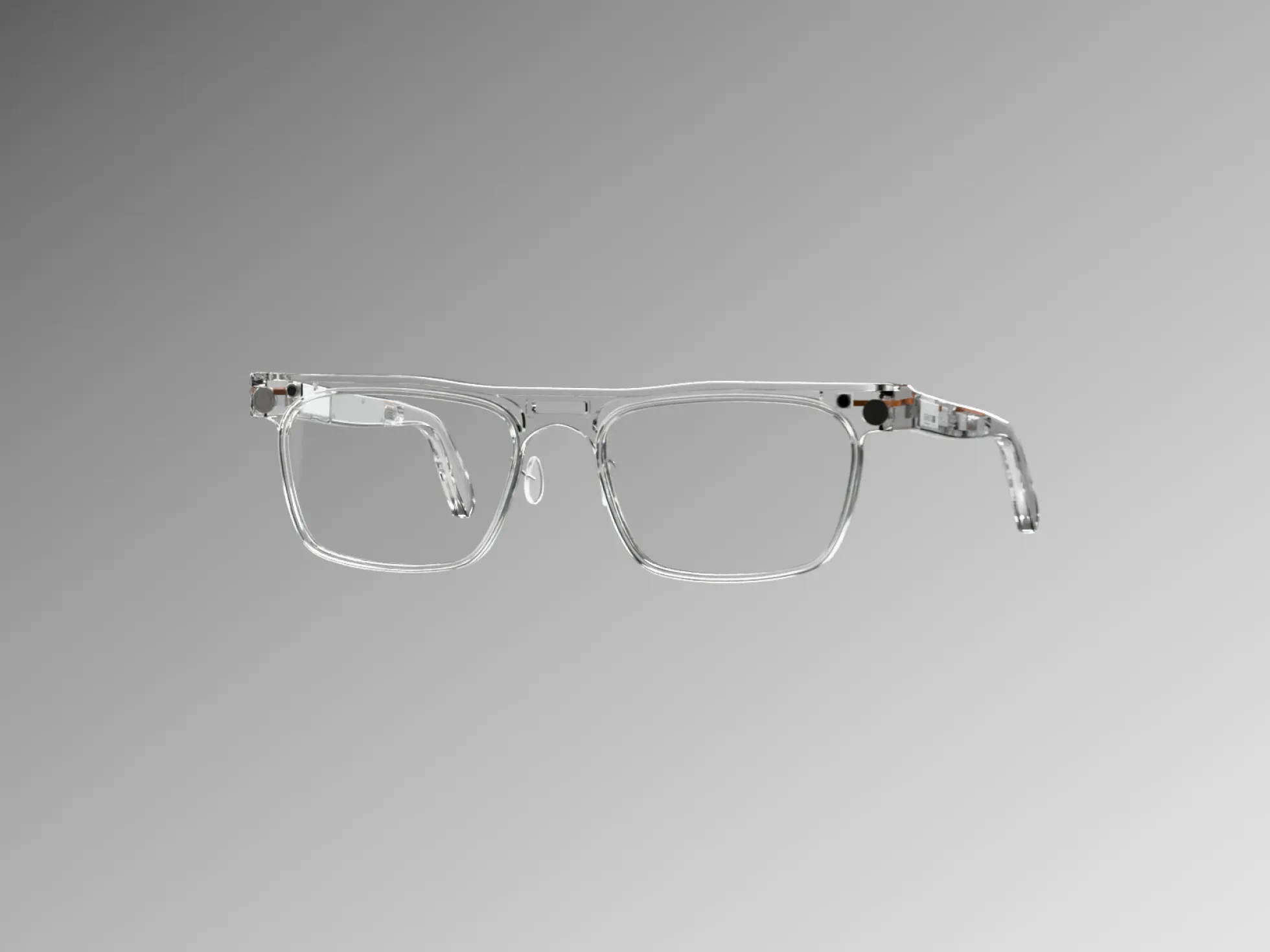

Senro PRO from a low angle on a grey background.

SENRO PROA self-initiated concept by Dipa Inhouse. Open to licensing and design partnerships.
